File System Aging:
Increasing the Relevance of File System Benchmarks
Keith A. Smith
Margo I. Seltzer
Harvard University
Division of Engineering and Applied Sciences
File System Performance
Problem #1
-
Full and empty file systems perform differently.
-
Most research uses empty file systems.
-
Real world file systems are never empty.
Don't benchmark empty
file systems!
Problem #2
-
Just filling a file system isn't enough.
-
The history of a file system determines its state.
-
Design decisions may affect how state evolves over time.
-
Most research uses empty file systems.
-
Researchers ignore a large area of design space.
Don't benchmark empty
file systems!
Our Solution
-
Use simulated workload to age file system.
Overview
-
Problem
-
File system aging
-
Creating the workload
-
Verifying the workload
-
Example
-
Conclusions
File System Aging--Goals
-
Examine state of file system after many months of activity.
-
Support different workloads.
-
Allow reproducibility.
-
Be architecture independent.
-
Make easy to use.
File System Aging--Method
-
Use real file system usage patterns to generate artificial aging workload.
-
Aging workload is sequence of file create, write, and delete operations.
-
Different workloads mimic different usage patterns.
-
Reproducibility provided by reusing same workload.
-
Workload parameterized in terms of POSIX interface.
Source for Aging Workload
-
Long term trace was impractical.
-
Data we had available:
Unix file system snapshots
-
Describes all files on file system.
-
Daily for one year
NFS traces
-
All NFS requests to large file server.
-
Continuous for two weeks.
Generating Aging Workload
Start with sequence of snapshots.
Populate file system.
-
Create files present in first snapshot.
Add inter-day file activity.
-
Compare successive snapshots.
-
Identify created and deleted files.
-
Add corresponding create, write, and delete operations.
Generating Aging Workload
Add intra-day file activity.
-
Use NFS traces to model short-lived file activity.
-
Intersperse create, write, and delete operations based on model.
Sample Workload
-
Aging Workload:
-
Seven months of activity
-
1 GB file system
-
~1.3 million file operations
-
Writes 87.3 GB to disk
-
Typical run time is 39 hours.
Verifying Workload
-
Start with empty file system.
-
Age file system using workload.
-
Execute file operations from workload on the test file system.
-
Compare file fragmentation on aged file system to last snapshot of file system from which workload was generated.
Verification Metric
-
Layout Score
-
Measures quality of file layout
-
Range: 0.0 - 1.0
-
Inversely proportional to file fragmentation
-
Score is percentage of file system blocks that are contiguous
-
1.0 => All files are contiguously allocated
-
0.0 => No contiguous allocation

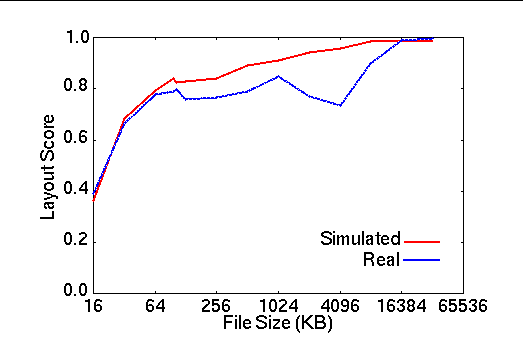

Aging Verification
Example
-
Modification to UNIX file system (FFS)
-
Use aging to evaluate performance trade-offs.
Test Platform
-
200 MHz Pentium Pro
-
32 MB RAM
-
PCI Bus
-
NCR 53c825 SCSI controller
-
Fujitsu M2694ES disk
-
1 GB, 5400 RPM, 15 Heads, 94 Sect./Track (avg.), 1818 Cyl. 9.5 ms Avg. Seek
-
BSD/OS 2.1
-
8 KB file system block size
-
maxcontig = 7 blocks (56 KB)
Baseline FFS Performance
(Aged file system)
The UNIX File System (FFS)
Cylinder Groups
-
Cylinder groups are allocation pools.
-
They exploit locality of reference.
-
Related data are collocated in same cylinder group.
-
All files in a directory
-
Sequential blocks of a file
File Allocation
-
First 12 file data blocks are allocated from same cylinder group as the file's directory.
-
The 13th and subsequent blocks are allocated in a different cylinder group.
-
All files have a large seek between 12th and 13th block.
-
12 blocks = 96 KB
Solution
-
NoSwitch file system
-
Don't switch cylinder groups after the 12th file block.
Potential Problem
-
Too many large files in one directory would cause cylinder group to run out of space.
-
Creates split files.
-
Files in different cylinder group than their directory.
-
Extra seek to get from directory to file.
-
But does this happen?
-
If so, how does it affect performance?
Evaluation of NoSwitch
-
Age two file systems, one that switches cylinder groups, and one that doesn't
-
Compare the resulting file systems
-
Overall performance
-
Number of split files.
Performance
Number of Split Files
|
Baseline
|
NoSwitch
|
Number of Files
|
33,797
|
33,797
|
Number of Split Files
|
4,312
|
9,155
|
Percentage of Split Files
|
13%
|
27%
|
Hot File Benchmark
-
Measure performance using files from aging workload
-
Files modified during final 30 days
-
92 MB (14.5% of allocated storage)
-
3,207 files (9.5% of files)
-
119 files large enough to benefit from NoSwitch
-
Two phase benchmark:
Overwrite entire file set
Hot File Performance
|
Baseline
|
NoSwitch
|
Layout Score
|
0.928
|
0.931
|
Number of Split Files
|
327
|
594
|
Read Throughput
|
0.81 MB/sec
|
0.84 MB/sec
|
Write Throughput
|
0.49 MB/sec
|
0.50 MB/sec
|
Analysis
-
NoSwitch file system improves performance of medium and large files.
-
NoSwitch file system increases the number of split files.
-
Net effect is small performance improvement.
-
Exact trade-off depends on workload!
Conclusions
-
Benchmarking empty file systems is unrealistic.
-
Benchmarking empty file systems can be misleading.
-
File system aging is a technique for increasing the relevance of file system benchmarking.
Don't benchmark empty
file systems!
File System Aging:
Increasing the Relevance of
File System Benchmarks
Keith A. Smith
Margo I. Seltzer
keith@eecs.harvard.edu
margo@eecs.harvard.edu
http://www.eecs.harvard.edu/~keith/sigmetrics97
Fragmentation Metric
-
Layout Score measures fragmentation
-
Fraction of blocks that are contiguous
-
Ignores first block of a file.
Sequential I/O Benchmark
-
32 MB data set
-
Uniform file size (16 - 16,384 KB)
-
25 files per directory
-
Two Phases
-
Create Phase: Create and write all files
-
Read Phase: Read all files

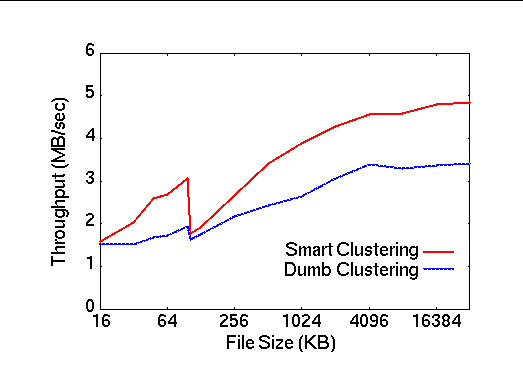

Comparison (empty)
Comparison (aged)
Aging Verification
Performance (empty)
Seek Distances in Split Files
Future Work
-
Improve aging algorithm
-
Expand to cover more workloads.
-
Parameterize for amount of aging or size of file system.
